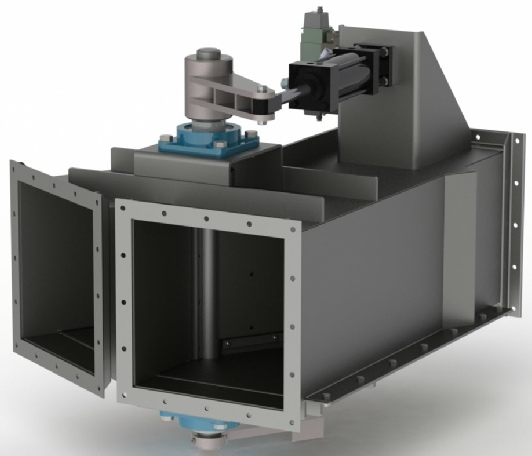

ATMOS360’S Diverters are designed to handle applications where there is dust or fiber loading in the air stream. The pneumatic actuator provides full stroke blade positioning, diverting air from one side to the other. Typical applications include diverting air from on-line hoods to an air bleed to maintain conveying velocity in the duct network in the event of a sheet break or thread-up operation.
Features and Benefits:
Applications: Air & dust collection systems
Heavy duty, high duty cycle design
Galvanized construction standard, other materials and finishes available
Flush blade seal; Low leakage
All bearings are externally mounted for easy access
Pneumatic cylinder
Visual flag for blade position indication
Flanged inlets/outlets, transitions optional
Removable access panel for maintenance
Sizes 8” thru 32” Square (Even Sizes)
Pressure: Up to 15” W.G.
Mountable in any position - vertical or horizontal
